Intent 或持久化存储处理复杂对象

在进程或页面通信时需要使用Intent传递数据; 在对象持久化时需要存储数据. 对于复杂的对象, 进行序列化才可传递或存储, 可以使用Java的Serializable方式或Android的Parcelable方式. 本文介绍Serializable和Parcelable的使用方式, 含有Demo.

更多: http://www.wangchenlong.org/
欢迎Follow我的GitHub: https://github.com/SpikeKing

本文源码的GitHub下载地址

---

Serializable

序列化User类, 实现Serializable接口即可. 注意serialVersionUID用于辅助序列化与反序列化, 只有相同时, 才会正常进行. 如不指定, 则系统会自动生成Hash值, 修改类代码, 可能会导致无法反序列化, 所以强制指定.

public class UserSerializable implements Serializable {
    // 标准序列ID, 用于判断版本
    private static final long serialVersionUID = 1L;

    public int userId;
    public String userName;
    public boolean isMale;

    public UserSerializable(int userId, String userName, boolean isMale) {
        this.userId = userId;
        this.userName = userName;
        this.isMale = isMale;
    }
}

序列化对象, 使用ObjectOutputStream存储已经序列化的对象数据, 通过writeObject写入对象.

public void serialIn(View view) {
    Context context = view.getContext();
    File cache = new File(context.getCacheDir(), "cache.txt");
    try {
        ObjectOutputStream out = new ObjectOutputStream(new FileOutputStream(cache));
        UserSerializable user = new UserSerializable(0, "Spike", false);
        out.writeObject(user);
        out.close();
        Toast.makeText(context, "序列化成功", Toast.LENGTH_SHORT).show();
    } catch (IOException e) {
        e.printStackTrace();
    }
}

缓存文件位置: new File(context.getCacheDir(), "cache.txt").

反序列对象, 使用ObjectInputStream反序列化对象, 通过readObject读取对象的持久化信息.

public void serialOut(View view) {
    Context context = view.getContext();
    File cache = new File(context.getCacheDir(), "cache.txt");
    UserSerializable newUser = null;
    try {
        ObjectInputStream in = new ObjectInputStream(new FileInputStream(cache));
        newUser = (UserSerializable) in.readObject();
        in.close();
    } catch (Exception e) {
        e.printStackTrace();
        Toast.makeText(context, "请先序列化", Toast.LENGTH_SHORT).show();

    }
    if (newUser != null) {
        String content = "序号: " + newUser.userId
                + ", 姓名: " + newUser.userName
                + ", 性别: " + (newUser.isMale ? "男" : "女");
        mSerialTvContent.setText(content);
    } else {
        mSerialTvContent.setText("无数据");
    }
}

---

Parcelable

Android推荐的序列化对象方式. 实现Parcelable接口, writeToParcel写入对象的变量, UserParcelable提供解析对象方式. CREATOR是创建序列化对象的匿名类, 必须实现, 包含创建单个对象与数组的方式. describeContents只有在含有文件描述符是返回1, 默认都是返回0, 不需要修改.

public class UserParcelable implements Parcelable {
    public int userId;
    public String userName;
    public boolean isMale;
    public BookParcelable book;

    public UserParcelable(int userId, String userName, boolean isMale, String bookName) {
        this.userId = userId;
        this.userName = userName;
        this.isMale = isMale;
        this.book = new BookParcelable(bookName);
    }

    @Override public int describeContents() {
        return 0;
    }

    @Override public void writeToParcel(Parcel dest, int flags) {
        dest.writeInt(userId);
        dest.writeString(userName);
        dest.writeInt(isMale ? 1 : 0);
        dest.writeParcelable(book, 0);
    }

    public static final Parcelable.Creator<UserParcelable> CREATOR = new Parcelable.Creator<UserParcelable>() {
        @Override public UserParcelable createFromParcel(Parcel source) {
            return new UserParcelable(source);
        }

        @Override public UserParcelable[] newArray(int size) {
            return new UserParcelable[size];
        }
    };

    private UserParcelable(Parcel source) {
        userId = source.readInt();
        userName = source.readString();
        isMale = source.readInt() == 1;
        book = source.readParcelable(Thread.currentThread().getContextClassLoader());
    }
}

使用Intent传递对象数据, 编号0, 姓名Spike, 性别女, 喜欢书籍三国演义.

public void parcelSend(View view) {
    Intent intent = new Intent(PASS_PARCEL_FILTER);
    intent.putExtra(PARCEL_EXTRA, new UserParcelable(0, "Spike", false, "三国演义"));
    mLBM.sendBroadcast(intent);
}

解析广播Intent的数据, 使用getParcelableExtra方法即可.

private BroadcastReceiver mParcelReceiver = new BroadcastReceiver() {
    @Override public void onReceive(Context context, Intent intent) {
        UserParcelable newUser = intent.getParcelableExtra(PARCEL_EXTRA);
        if (newUser != null) {
            String content = "序号: " + newUser.userId
                    + ", 姓名: " + newUser.userName
                    + ", 性别: " + (newUser.isMale ? "男" : "女")
                    + ", 书: " + newUser.book.bookName;
            Toast.makeText(context, content, Toast.LENGTH_SHORT).show();
            mParcelTvContent.setText(content);
        }
    }
};

---

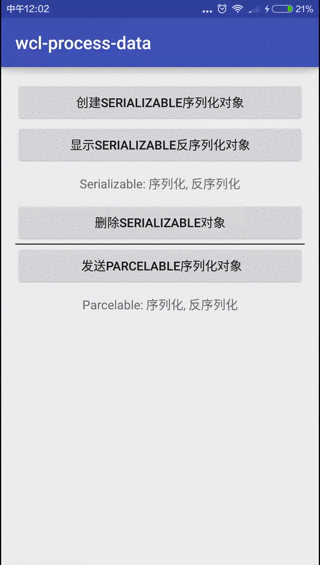

效果

Serializable序列化需要大量的IO操作, Parcelable序列化虽然使用复杂, 但是效率很高, 是Android开发的首选. Parcelable主要应用于内存序列化, 如Intent广播等.

OK, that’s all! Enjoy it!

---
