使用属性动画实现星光四射的动画效果

发表于   |   分类于   |     |   阅读次数

在Android中, 属性动画是非常有意思的功能, 控制参数变换动画效果. 与使用gif图片相比, 动画控件要节约空间和增加响应速度. 本文介绍使用属性动画实现星光四射的动画效果, 可以作为点赞按钮.

更多: http://www.wangchenlong.org/

要点:
(1) 使用PercentLayout设置自定义控件的大小.
(2) 属性动画的两个重要函数, 中值和映射.
(3) 擦除画笔(PorterDuff.Mode.CLEAR)的使用方法.
(4) 使用颜色估值器(ArgbEvaluator)控制颜色变换.
(5) 自定义控件的延迟重绘(postInvalidate)方法.
(6) 属性动画(Property<View, Float>)的设置和使用.
(7) 使用映射函数, 控制变换节奏.
(8) 插值器(Interpolator)的使用方法.
(9) 动画集合(AnimatorSet)的使用方法.
(10) 点击事件(onTouchEvent)的设置.


掌握这些之后, 我们就可以使用属性动画完成一些自定义控件, 让我们来看看是如何实现的.

本文源码的GitHub下载地址

欢迎Follow我的GitHub: https://github.com/SpikeKing

动画

主页

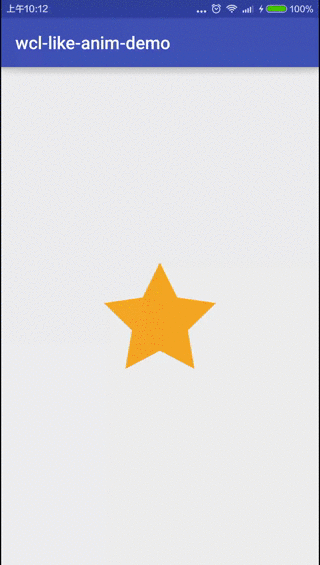

主页加载自定义的星型控件, 所有逻辑都在控件中实现.

逻辑

1
2
3
4
5
6
7
public class MainActivity extends AppCompatActivity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }
}

布局

1
2
3
4
5
6
7
8
9
10
11
12
13
<FrameLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="clwang.chunyu.me.wcl_like_anim_demo.MainActivity">

    <clwang.chunyu.me.wcl_like_anim_demo.LikeButtonView
        android:layout_width="200dp"
        android:layout_height="200dp"
        android:layout_gravity="center"/>

</FrameLayout>

星型控件

控件主要分为三个部分:
(1) 圆环的爆炸效果.
(2) 点状的散射效果.
(3) 星星的明暗变化.

布局, 使用PercentLayout, 圆环和星星占控件宽度的40%, 高度与宽度相同.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
             xmlns:app="http://schemas.android.com/apk/res-auto"
             android:layout_width="match_parent"
             android:layout_height="match_parent">

    <clwang.chunyu.me.wcl_like_anim_demo.DotsView
        android:id="@+id/like_button_dv_dots"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_gravity="center"/>

    <android.support.percent.PercentRelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:gravity="center">

        <clwang.chunyu.me.wcl_like_anim_demo.CircleView
            android:id="@+id/like_button_cv_circle"
            android:layout_width="0dp"
            android:layout_height="0dp"
            app:layout_aspectRatio="100%"
            app:layout_widthPercent="40%"/>

    </android.support.percent.PercentRelativeLayout>

    <android.support.percent.PercentRelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:gravity="center">

        <ImageView
            android:id="@+id/like_button_iv_star"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_gravity="center"
            android:contentDescription="@null"
            android:src="@drawable/ic_star_rate_off"
            app:layout_aspectRatio="100%"
            app:layout_widthPercent="40%"/>

    </android.support.percent.PercentRelativeLayout>

</FrameLayout>

属性动画常用工具类, 映射函数和中值函数.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
 * 工具类
 * <p>
 * Created by wangchenlong on 16/1/5.
 */
public class Utils {
    // 映射到下一个域
    public static double mapValueFromRangeToRange(double value, double fromLow, double fromHigh, double toLow, double toHigh) {
        return toLow + ((value - fromLow) / (fromHigh - fromLow) * (toHigh - toLow));
    }

    // 中间值, value<low, 返回low, value>high, 返回high.
    public static double clamp(double value, double low, double high) {
        return Math.min(Math.max(value, low), high);
    }
}

圆环

圆环要实现爆炸效果. 外圆是实心圆圈, 颜色渐变; 内圆是擦除效果.

逻辑

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
/**
 * 圆形视图, 外圆是实心圆圈, 颜色渐变; 内圆是擦除效果.
 * <p>
 * Created by wangchenlong on 16/1/5.
 */
public class CircleView extends View {

    private static final int START_COLOR = 0xFFFF5722;
    private static final int END_COLOR = 0xFFFFC107;

    private ArgbEvaluator mArgbEvaluator; // Argb估计器

    private Paint mCirclePaint; // 圆形视图
    private Paint mMaskPaint; // 掩盖视图

    private Canvas mTempCanvas; // 中间画布
    private Bitmap mTempBitmap; // 中间图画

    private int mMaxCircleSize; // 最大圆环大小

    private float mOuterCircleRadiusProgress; // 外圈圆的控制器
    private float mInnerCircleRadiusProgress; // 内圈圆的控制器

    public CircleView(Context context) {
        super(context);
        init();
    }

    public CircleView(Context context, AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    public CircleView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    @TargetApi(Build.VERSION_CODES.LOLLIPOP)
    public CircleView(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
    }

    // 初始化
    private void init() {
        mCirclePaint = new Paint();
        mCirclePaint.setStyle(Paint.Style.FILL);

        mMaskPaint = new Paint(); // 消失的效果
        mMaskPaint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.CLEAR));

        mArgbEvaluator = new ArgbEvaluator();
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        mMaxCircleSize = w / 2; // 当前画布的一半.
        mTempBitmap = Bitmap.createBitmap(getWidth(), getWidth(), Bitmap.Config.ARGB_8888);
        mTempCanvas = new Canvas(mTempBitmap); // 初始化画布
    }

    @Override protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        mTempCanvas.drawColor(0xffffff, PorterDuff.Mode.CLEAR); // 清除颜色, 设置为白色
        // 在控件的中心画圆, 宽度是当前视图宽度的一半(会随着控件变化), 半径会越来越大.
        mTempCanvas.drawCircle(getWidth() / 2, getHeight() / 2, mOuterCircleRadiusProgress * mMaxCircleSize, mCirclePaint);
        mTempCanvas.drawCircle(getWidth() / 2, getHeight() / 2, mInnerCircleRadiusProgress * mMaxCircleSize, mMaskPaint);
        canvas.drawBitmap(mTempBitmap, 0, 0, null); // 画布绘制两个圆.
    }

    public float getOuterCircleRadiusProgress() {
        return mOuterCircleRadiusProgress;
    }

    public void setOuterCircleRadiusProgress(float outerCircleRadiusProgress) {
        mOuterCircleRadiusProgress = outerCircleRadiusProgress;
        updateCircleColor();
        postInvalidate(); // 延迟重绘
    }

    // 更新圆圈的颜色变化
    private void updateCircleColor() {
        // 0.5到1颜色渐变
        float colorProgress = (float) Utils.clamp(mOuterCircleRadiusProgress, 0.5, 1);
        // 转换映射控件
        colorProgress = (float) Utils.mapValueFromRangeToRange(colorProgress, 0.5f, 1f, 0f, 1f);
        mCirclePaint.setColor((Integer) mArgbEvaluator.evaluate(colorProgress, START_COLOR, END_COLOR));
    }

    public float getInnerCircleRadiusProgress() {
        return mInnerCircleRadiusProgress;
    }

    public void setInnerCircleRadiusProgress(float innerCircleRadiusProgress) {
        mInnerCircleRadiusProgress = innerCircleRadiusProgress;
        postInvalidate(); // 延迟重绘
    }

    // 内部圆圈处理
    public static final Property<CircleView, Float> INNER_CIRCLE_RADIUS_PROGRESS =
            new Property<CircleView, Float>(Float.class, "innerCircleRadiusProgress") {
                @Override
                public Float get(CircleView object) {
                    return object.getInnerCircleRadiusProgress();
                }

                @Override
                public void set(CircleView object, Float value) {
                    object.setInnerCircleRadiusProgress(value);
                }
            };

    // 外部圆圈处理
    public static final Property<CircleView, Float> OUTER_CIRCLE_RADIUS_PROGRESS =
            new Property<CircleView, Float>(Float.class, "outerCircleRadiusProgress") {
                @Override
                public Float get(CircleView object) {
                    return object.getOuterCircleRadiusProgress();
                }

                @Override
                public void set(CircleView object, Float value) {
                    object.setOuterCircleRadiusProgress(value);
                }
            };
}

初始化, 外圆使用实心画笔(Paint), 内圆使用擦除画笔. ArgbEvaluator控制颜色变换.

1
2
3
4
5
6
7
8
9
10
// 初始化
private void init() {
    mCirclePaint = new Paint(); // 实心圆圈
    mCirclePaint.setStyle(Paint.Style.FILL);

    mMaskPaint = new Paint(); // 消失效果
    mMaskPaint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.CLEAR));

    mArgbEvaluator = new ArgbEvaluator();
}

圆圈, 内圆和外圆绘制在画布的中心, 半径是画布当前宽度的一半.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
    super.onSizeChanged(w, h, oldw, oldh);
    mMaxCircleSize = w / 2; // 当前画布的一半.
    mTempBitmap = Bitmap.createBitmap(getWidth(), getWidth(), Bitmap.Config.ARGB_8888);
    mTempCanvas = new Canvas(mTempBitmap); // 初始化画布
}

@Override protected void onDraw(Canvas canvas) {
    super.onDraw(canvas);
    mTempCanvas.drawColor(0xffffff, PorterDuff.Mode.CLEAR); // 清除颜色, 设置为白色
    // 在控件的中心画圆, 宽度是当前视图宽度的一半(会随着控件变化).
    mTempCanvas.drawCircle(getWidth() / 2, getHeight() / 2, mOuterCircleRadiusProgress * mMaxCircleSize, mCirclePaint);
    mTempCanvas.drawCircle(getWidth() / 2, getHeight() / 2, mInnerCircleRadiusProgress * mMaxCircleSize, mMaskPaint);
    canvas.drawBitmap(mTempBitmap, 0, 0, null); // 画布绘制两个圆.
}

通过控制Progress控制内外圆圈的半径.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
public float getOuterCircleRadiusProgress() {
    return mOuterCircleRadiusProgress;
}

public void setOuterCircleRadiusProgress(float outerCircleRadiusProgress) {
    mOuterCircleRadiusProgress = outerCircleRadiusProgress;
    updateCircleColor();
    postInvalidate(); // 延迟重绘
}

// 更新圆圈
private void updateCircleColor() {
    // 0.5到1颜色渐变
    float colorProgress = (float) Utils.clamp(mOuterCircleRadiusProgress, 0.5, 1);
    // 转换映射控件
    colorProgress = (float) Utils.mapValueFromRangeToRange(colorProgress, 0.5f, 1f, 0f, 1f);
    mCirclePaint.setColor((Integer) mArgbEvaluator.evaluate(colorProgress, START_COLOR, END_COLOR));
}

public float getInnerCircleRadiusProgress() {
    return mInnerCircleRadiusProgress;
}

public void setInnerCircleRadiusProgress(float innerCircleRadiusProgress) {
    mInnerCircleRadiusProgress = innerCircleRadiusProgress;
    postInvalidate(); // 延迟重绘
}

postInvalidate(), 延迟重绘, 不会阻碍UI线程.

设置动画属性, 通过设置progress的值, 改变圆圈的大小和颜色.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
// 内部圆圈处理
public static final Property<CircleView, Float> INNER_CIRCLE_RADIUS_PROGRESS =
        new Property<CircleView, Float>(Float.class, "innerCircleRadiusProgress") {
            @Override
            public Float get(CircleView object) {
                return object.getInnerCircleRadiusProgress();
            }

            @Override
            public void set(CircleView object, Float value) {
                object.setInnerCircleRadiusProgress(value);
            }
        };

// 外部圆圈处理
public static final Property<CircleView, Float> OUTER_CIRCLE_RADIUS_PROGRESS =
        new Property<CircleView, Float>(Float.class, "outerCircleRadiusProgress") {
            @Override
            public Float get(CircleView object) {
                return object.getOuterCircleRadiusProgress();
            }

            @Override
            public void set(CircleView object, Float value) {
                object.setOuterCircleRadiusProgress(value);
            }
        };

散射点

散射点, 由大点小点组成, 两类点排列和颜色均错开, 速度先慢后快向外发射.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
/**
 * 发散的点, 由大点小点组成, 两类点排列和颜色均错开, 速度先慢后快向外发射.
 * <p>
 * Created by wangchenlong on 16/1/6.
 */
public class DotsView extends View {
    private static final int DOTS_COUNT = 7; // 7个点阵
    private static final int OUTER_DOTS_POSITION_ANGLE = 51; // 每个原点51度

    private static final int COLOR_1 = 0xFFFFC107;
    private static final int COLOR_2 = 0xFFFF9800;
    private static final int COLOR_3 = 0xFFFF5722;
    private static final int COLOR_4 = 0xFFF44336;

    private final Paint[] mCirclePaints = new Paint[4]; // 4种类型的圆圈

    // 图像的中心位置
    private int mCenterX;
    private int mCenterY;

    private float mMaxOuterDotsRadius; // 最大外圈的半径
    private float mMaxInnerDotsRadius; // 最大内圈的半径
    private float mMaxDotSize; // 圆圈的最大尺寸

    private float mCurrentProgress = 0; // 当前进度, 核心参数

    private float mCurrentRadius1 = 0; // 外圈点的半径
    private float mCurrentDotSize1 = 0; // 外圈点的大小

    private float mCurrentDotSize2 = 0; // 内圈点的半径
    private float mCurrentRadius2 = 0; // 内圈点的大小

    private ArgbEvaluator argbEvaluator = new ArgbEvaluator();

    public DotsView(Context context) {
        super(context);
        init();
    }

    public DotsView(Context context, AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    public DotsView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    @TargetApi(Build.VERSION_CODES.LOLLIPOP)
    public DotsView(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        init();
    }

    private void init() {
        // 填充圆圈
        for (int i = 0; i < mCirclePaints.length; i++) {
            mCirclePaints[i] = new Paint();
            mCirclePaints[i].setStyle(Paint.Style.FILL);
        }
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        mCenterX = w / 2;
        mCenterY = h / 2;
        mMaxDotSize = 20; // 点的大小
        mMaxOuterDotsRadius = w / 2 - mMaxDotSize * 2; // 最大外圈
        mMaxInnerDotsRadius = 0.8f * mMaxOuterDotsRadius; // 最大内圈
    }

    @Override
    protected void onDraw(Canvas canvas) {
        drawOuterDotsFrame(canvas);
        drawInnerDotsFrame(canvas);
    }

    // 外圈点, 画若干点, 使用不同颜色, 中心位置CurrentRadius和点大小CurrentDotSize是变量.
    private void drawOuterDotsFrame(Canvas canvas) {
        for (int i = 0; i < DOTS_COUNT; i++) {
            int cX = (int) (mCenterX + mCurrentRadius1 * Math.cos(i * OUTER_DOTS_POSITION_ANGLE * Math.PI / 180));
            int cY = (int) (mCenterY + mCurrentRadius1 * Math.sin(i * OUTER_DOTS_POSITION_ANGLE * Math.PI / 180));
            canvas.drawCircle(cX, cY, mCurrentDotSize1, mCirclePaints[i % mCirclePaints.length]);
        }
    }

    // 内圈点, 与外圈点错开10, 颜色也与外圈点开, 中心位置CurrentRadius和点大小CurrentDotSize是变量.
    private void drawInnerDotsFrame(Canvas canvas) {
        for (int i = 0; i < DOTS_COUNT; i++) {
            int cX = (int) (mCenterX + mCurrentRadius2 * Math.cos((i * OUTER_DOTS_POSITION_ANGLE - 10) * Math.PI / 180));
            int cY = (int) (mCenterY + mCurrentRadius2 * Math.sin((i * OUTER_DOTS_POSITION_ANGLE - 10) * Math.PI / 180));

            // i+1确保颜色不同
            canvas.drawCircle(cX, cY, mCurrentDotSize2, mCirclePaints[(i + 1) % mCirclePaints.length]);
        }
    }

    // 设置当前进度, 会更新大小和轨迹
    public void setCurrentProgress(float currentProgress) {
        mCurrentProgress = currentProgress;

        // 更新位置
        updateInnerDotsPosition();
        updateOuterDotsPosition();

        updateDotsPaints(); // 更新颜色
        updateDotsAlpha(); // 更新透明度

        postInvalidate(); // 每次设置都会延迟重绘
    }

    public float getCurrentProgress() {
        return mCurrentProgress;
    }

    // 更新内部点
    private void updateInnerDotsPosition() {
        // 0.3以上不动
        if (mCurrentProgress < 0.3f) {
            this.mCurrentRadius2 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0, 0.3f, 0.f, mMaxInnerDotsRadius);
        } else {
            this.mCurrentRadius2 = mMaxInnerDotsRadius;
        }

        // 点的缩小速度
        if (mCurrentProgress < 0.2) {
            this.mCurrentDotSize2 = mMaxDotSize;
        } else if (mCurrentProgress < 0.5) {
            this.mCurrentDotSize2 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.2f, 0.5f, mMaxDotSize, 0.3 * mMaxDotSize);
        } else {
            this.mCurrentDotSize2 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.5f, 1f, mMaxDotSize * 0.3f, 0);
        }

    }

    // 变换外层点的位置
    private void updateOuterDotsPosition() {
        // 半径先走的快, 后走的慢
        if (mCurrentProgress < 0.3f) {
            mCurrentRadius1 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.0f, 0.3f, 0, mMaxOuterDotsRadius * 0.8f);
        } else {
            mCurrentRadius1 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.3f, 1f, 0.8f * mMaxOuterDotsRadius, mMaxOuterDotsRadius);
        }

        // 点的大小, 小于0.7是最大点, 大于0.7逐渐为0.
        if (mCurrentProgress < 0.7f) {
            mCurrentDotSize1 = mMaxDotSize;
        } else {
            mCurrentDotSize1 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.7f, 1f, mMaxDotSize, 0);
        }
    }

    // 变化颜色
    private void updateDotsPaints() {
        if (mCurrentProgress < 0.5f) {
            float progress = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0f, 0.5f, 0, 1f);
            mCirclePaints[0].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_1, COLOR_2));
            mCirclePaints[1].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_2, COLOR_3));
            mCirclePaints[2].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_3, COLOR_4));
            mCirclePaints[3].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_4, COLOR_1));
        } else {
            float progress = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.5f, 1f, 0, 1f);
            mCirclePaints[0].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_2, COLOR_3));
            mCirclePaints[1].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_3, COLOR_4));
            mCirclePaints[2].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_4, COLOR_1));
            mCirclePaints[3].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_1, COLOR_2));
        }
    }

    // 变化透明度
    private void updateDotsAlpha() {
        float progress = (float) Utils.clamp(mCurrentProgress, 0.6f, 1f); // 最小0.6, 最大1
        int alpha = (int) Utils.mapValueFromRangeToRange(progress, 0.6f, 1f, 255, 0); // 直至消失
        mCirclePaints[0].setAlpha(alpha);
        mCirclePaints[1].setAlpha(alpha);
        mCirclePaints[2].setAlpha(alpha);
        mCirclePaints[3].setAlpha(alpha);
    }

    public static final Property<DotsView, Float> DOTS_PROGRESS = new Property<DotsView, Float>(Float.class, "dotsProgress") {
        @Override
        public Float get(DotsView object) {
            return object.getCurrentProgress();
        }

        @Override
        public void set(DotsView object, Float value) {
            object.setCurrentProgress(value);
        }
    };
}

初始化圆圈, 设置点的大小和半径, 大小点错开排列.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
private void init() {
    // 填充圆圈
    for (int i = 0; i < mCirclePaints.length; i++) {
        mCirclePaints[i] = new Paint();
        mCirclePaints[i].setStyle(Paint.Style.FILL);
    }
}

@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
    super.onSizeChanged(w, h, oldw, oldh);
    mCenterX = w / 2;
    mCenterY = h / 2;
    mMaxDotSize = 20; // 点的大小
    mMaxOuterDotsRadius = w / 2 - mMaxDotSize * 2; // 最大外圈
    mMaxInnerDotsRadius = 0.8f * mMaxOuterDotsRadius; // 最大内圈
}

@Override
protected void onDraw(Canvas canvas) {
    drawOuterDotsFrame(canvas);
    drawInnerDotsFrame(canvas);
}

// 外圈点, 画若干点, 使用不同颜色, 中心位置CurrentRadius和点大小CurrentDotSize是变量.
private void drawOuterDotsFrame(Canvas canvas) {
    for (int i = 0; i < DOTS_COUNT; i++) {
        int cX = (int) (mCenterX + mCurrentRadius1 * Math.cos(i * OUTER_DOTS_POSITION_ANGLE * Math.PI / 180));
        int cY = (int) (mCenterY + mCurrentRadius1 * Math.sin(i * OUTER_DOTS_POSITION_ANGLE * Math.PI / 180));
        canvas.drawCircle(cX, cY, mCurrentDotSize1, mCirclePaints[i % mCirclePaints.length]);
    }
}

// 内圈点, 与外圈点错开10, 颜色也与外圈点开, 中心位置CurrentRadius和点大小CurrentDotSize是变量.
private void drawInnerDotsFrame(Canvas canvas) {
    for (int i = 0; i < DOTS_COUNT; i++) {
        int cX = (int) (mCenterX + mCurrentRadius2 * Math.cos((i * OUTER_DOTS_POSITION_ANGLE - 10) * Math.PI / 180));
        int cY = (int) (mCenterY + mCurrentRadius2 * Math.sin((i * OUTER_DOTS_POSITION_ANGLE - 10) * Math.PI / 180));

        // i+1确保颜色不同
        canvas.drawCircle(cX, cY, mCurrentDotSize2, mCirclePaints[(i + 1) % mCirclePaints.length]);
    }
}

设置点的大小和半径, 颜色变化, 透明度, 使用映射函数控制速度变化.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
// 设置当前进度, 会更新大小和轨迹
public void setCurrentProgress(float currentProgress) {
    mCurrentProgress = currentProgress;

    // 更新位置
    updateInnerDotsPosition();
    updateOuterDotsPosition();

    updateDotsPaints(); // 更新颜色
    updateDotsAlpha(); // 更新透明度

    postInvalidate(); // 每次设置都会延迟重绘
}

public float getCurrentProgress() {
    return mCurrentProgress;
}

// 更新内部点
private void updateInnerDotsPosition() {
    // 0.3以上不动
    if (mCurrentProgress < 0.3f) {
        this.mCurrentRadius2 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0, 0.3f, 0.f, mMaxInnerDotsRadius);
    } else {
        this.mCurrentRadius2 = mMaxInnerDotsRadius;
    }

    // 点的缩小速度
    if (mCurrentProgress < 0.2) {
        this.mCurrentDotSize2 = mMaxDotSize;
    } else if (mCurrentProgress < 0.5) {
        this.mCurrentDotSize2 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.2f, 0.5f, mMaxDotSize, 0.3 * mMaxDotSize);
    } else {
        this.mCurrentDotSize2 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.5f, 1f, mMaxDotSize * 0.3f, 0);
    }

}

// 变换外层点的位置
private void updateOuterDotsPosition() {
    // 半径先走的快, 后走的慢
    if (mCurrentProgress < 0.3f) {
        mCurrentRadius1 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.0f, 0.3f, 0, mMaxOuterDotsRadius * 0.8f);
    } else {
        mCurrentRadius1 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.3f, 1f, 0.8f * mMaxOuterDotsRadius, mMaxOuterDotsRadius);
    }

    // 点的大小, 小于0.7是最大点, 大于0.7逐渐为0.
    if (mCurrentProgress < 0.7f) {
        mCurrentDotSize1 = mMaxDotSize;
    } else {
        mCurrentDotSize1 = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.7f, 1f, mMaxDotSize, 0);
    }
}

// 变化颜色
private void updateDotsPaints() {
    if (mCurrentProgress < 0.5f) {
        float progress = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0f, 0.5f, 0, 1f);
        mCirclePaints[0].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_1, COLOR_2));
        mCirclePaints[1].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_2, COLOR_3));
        mCirclePaints[2].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_3, COLOR_4));
        mCirclePaints[3].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_4, COLOR_1));
    } else {
        float progress = (float) Utils.mapValueFromRangeToRange(mCurrentProgress, 0.5f, 1f, 0, 1f);
        mCirclePaints[0].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_2, COLOR_3));
        mCirclePaints[1].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_3, COLOR_4));
        mCirclePaints[2].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_4, COLOR_1));
        mCirclePaints[3].setColor((Integer) argbEvaluator.evaluate(progress, COLOR_1, COLOR_2));
    }
}

// 变化透明度
private void updateDotsAlpha() {
    float progress = (float) Utils.clamp(mCurrentProgress, 0.6f, 1f); // 最小0.6, 最大1
    int alpha = (int) Utils.mapValueFromRangeToRange(progress, 0.6f, 1f, 255, 0); // 直至消失
    mCirclePaints[0].setAlpha(alpha);
    mCirclePaints[1].setAlpha(alpha);
    mCirclePaints[2].setAlpha(alpha);
    mCirclePaints[3].setAlpha(alpha);
}

添加属性

1
2
3
4
5
6
7
8
9
10
11
public static final Property<DotsView, Float> DOTS_PROGRESS = new Property<DotsView, Float>(Float.class, "dotsProgress") {
    @Override
    public Float get(DotsView object) {
        return object.getCurrentProgress();
    }

    @Override
    public void set(DotsView object, Float value) {
        object.setCurrentProgress(value);
    }
};

控件逻辑

喜欢按钮, 通过属性值变化(0-1), 设置子控件状态, 使用插值器控制速度变化.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
/**
 * 喜欢按钮, 通过属性值变化(0-1)设置子控件状态, 使用不同的插值器控制速度.
 * <p>
 * Created by wangchenlong on 16/1/5.
 */
public class LikeButtonView extends FrameLayout {

    @Bind(R.id.like_button_cv_circle) CircleView mCvCircle; // 圆形
    @Bind(R.id.like_button_iv_star) ImageView mIvStar; // 星星
    @Bind(R.id.like_button_dv_dots) DotsView mDvDots; // 圆圈

    private DecelerateInterpolator mDecelerate; // 减速插值
    private OvershootInterpolator mOvershoot; // 超出插值
    private AccelerateDecelerateInterpolator mAccelerateDecelerate; // 加速度减速插值
    private AnimatorSet mAnimatorSet; // 动画集合

    private boolean mIsChecked; // 点击状态

    public LikeButtonView(Context context) {
        super(context);
        init();
    }

    public LikeButtonView(Context context, AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    public LikeButtonView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    @TargetApi(Build.VERSION_CODES.LOLLIPOP)
    public LikeButtonView(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        init();
    }

    // 初始化视图
    private void init() {
        isInEditMode();

        LayoutInflater.from(getContext()).inflate(R.layout.view_like_button, this, true);
        ButterKnife.bind(this);

        mDecelerate = new DecelerateInterpolator(); // 减速插值器
        mOvershoot = new OvershootInterpolator(4); // 超出插值器
        mAccelerateDecelerate = new AccelerateDecelerateInterpolator(); // 加速再减速插值器

        setOnClickListener(this::clickView);
    }

    // 点击视图
    private void clickView(View view) {
        mIsChecked = !mIsChecked;
        mIvStar.setImageResource(mIsChecked ? R.drawable.ic_star_rate_on : R.drawable.ic_star_rate_off);

        if (mAnimatorSet != null) {
            mAnimatorSet.cancel();
        }

        if (mIsChecked) {
            mIvStar.animate().cancel();
            mIvStar.setScaleX(0);
            mIvStar.setScaleY(0);
            mCvCircle.setInnerCircleRadiusProgress(0);
            mCvCircle.setOuterCircleRadiusProgress(0);
            mDvDots.setCurrentProgress(0);

            mAnimatorSet = new AnimatorSet();

            ObjectAnimator outerCircleAnimator = ObjectAnimator.ofFloat(mCvCircle, CircleView.OUTER_CIRCLE_RADIUS_PROGRESS, 0.1f, 1f);
            outerCircleAnimator.setDuration(250);
            outerCircleAnimator.setInterpolator(mDecelerate);

            ObjectAnimator innerCircleAnimator = ObjectAnimator.ofFloat(mCvCircle, CircleView.INNER_CIRCLE_RADIUS_PROGRESS, 0.1f, 1f);
            innerCircleAnimator.setDuration(200);
            innerCircleAnimator.setStartDelay(200);
            innerCircleAnimator.setInterpolator(mDecelerate);

            ObjectAnimator starScaleYAnimator = ObjectAnimator.ofFloat(mIvStar, ImageView.SCALE_Y, 0.2f, 1f);
            starScaleYAnimator.setDuration(350);
            starScaleYAnimator.setStartDelay(250);
            starScaleYAnimator.setInterpolator(mOvershoot);

            ObjectAnimator starScaleXAnimator = ObjectAnimator.ofFloat(mIvStar, ImageView.SCALE_X, 0.2f, 1f);
            starScaleXAnimator.setDuration(350);
            starScaleXAnimator.setStartDelay(250);
            starScaleXAnimator.setInterpolator(mOvershoot);

            ObjectAnimator dotsAnimator = ObjectAnimator.ofFloat(mDvDots, DotsView.DOTS_PROGRESS, 0, 1f);
            dotsAnimator.setDuration(900);
            dotsAnimator.setStartDelay(50);
            dotsAnimator.setInterpolator(mAccelerateDecelerate);

            mAnimatorSet.playTogether(
                    outerCircleAnimator,
                    innerCircleAnimator,
                    starScaleYAnimator,
                    starScaleXAnimator,
                    dotsAnimator
            );


            mAnimatorSet.addListener(new AnimatorListenerAdapter() {
                @Override
                public void onAnimationCancel(Animator animation) {
                    mIvStar.setScaleX(1);
                    mIvStar.setScaleY(1);
                    mCvCircle.setInnerCircleRadiusProgress(0);
                    mCvCircle.setOuterCircleRadiusProgress(0);
                    mDvDots.setCurrentProgress(0);
                }
            });

            mAnimatorSet.start();
        }
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        switch (event.getAction()) {
            case MotionEvent.ACTION_DOWN:
                mIvStar.animate().scaleX(0.7f).scaleY(0.7f).setDuration(150).setInterpolator(mDecelerate);
                setPressed(true);
                break;

            case MotionEvent.ACTION_MOVE:
                float x = event.getX();
                float y = event.getY();
                boolean isInside = (x > 0 && x < getWidth() && y > 0 && y < getHeight());
                if (isPressed() != isInside) {
                    setPressed(isInside);
                }
                break;

            case MotionEvent.ACTION_UP:
                mIvStar.animate().scaleX(1).scaleY(1).setInterpolator(mDecelerate);
                if (isPressed()) {
                    performClick();
                    setPressed(false);
                }
                break;
        }
        return true;
    }
}

初始化, 减速插值器用于圆环控件, 超出插值器用于星星图片, 加速再减速插值器用于散射点.

1
2
3
4
5
6
7
8
9
10
11
12
13
// 初始化视图
private void init() {
    isInEditMode();

    LayoutInflater.from(getContext()).inflate(R.layout.view_like_button, this, true);
    ButterKnife.bind(this);

    mDecelerate = new DecelerateInterpolator(); // 减速插值器
    mOvershoot = new OvershootInterpolator(4); // 超出插值器, 图片放大和缩小
    mAccelerateDecelerate = new AccelerateDecelerateInterpolator(); // 加速再减速插值器

    setOnClickListener(this::clickView);
}

依次设计三个控件的动画, 放入动画集合, 设置初始状态, 启动.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
// 点击视图
private void clickView(View view) {
    mIsChecked = !mIsChecked;
    mIvStar.setImageResource(mIsChecked ? R.drawable.ic_star_rate_on : R.drawable.ic_star_rate_off);

    // 情况状态
    if (mAnimatorSet != null) {
        mAnimatorSet.cancel();
    }

    if (mIsChecked) {
        mIvStar.animate().cancel();
        mIvStar.setScaleX(0);
        mIvStar.setScaleY(0);
        mCvCircle.setInnerCircleRadiusProgress(0);
        mCvCircle.setOuterCircleRadiusProgress(0);
        mDvDots.setCurrentProgress(0);

        mAnimatorSet = new AnimatorSet();

        ObjectAnimator outerCircleAnimator = ObjectAnimator.ofFloat(mCvCircle, CircleView.OUTER_CIRCLE_RADIUS_PROGRESS, 0.1f, 1f);
        outerCircleAnimator.setDuration(250);
        outerCircleAnimator.setInterpolator(mDecelerate);

        // 延迟擦除
        ObjectAnimator innerCircleAnimator = ObjectAnimator.ofFloat(mCvCircle, CircleView.INNER_CIRCLE_RADIUS_PROGRESS, 0.1f, 1f);
        innerCircleAnimator.setDuration(200);
        innerCircleAnimator.setStartDelay(200);
        innerCircleAnimator.setInterpolator(mDecelerate);

        // 竖直水平放大和缩小
        ObjectAnimator starScaleYAnimator = ObjectAnimator.ofFloat(mIvStar, ImageView.SCALE_Y, 0.2f, 1f);
        starScaleYAnimator.setDuration(350);
        starScaleYAnimator.setStartDelay(250);
        starScaleYAnimator.setInterpolator(mOvershoot);

        ObjectAnimator starScaleXAnimator = ObjectAnimator.ofFloat(mIvStar, ImageView.SCALE_X, 0.2f, 1f);
        starScaleXAnimator.setDuration(350);
        starScaleXAnimator.setStartDelay(250);
        starScaleXAnimator.setInterpolator(mOvershoot);

        // 先快后慢.
        ObjectAnimator dotsAnimator = ObjectAnimator.ofFloat(mDvDots, DotsView.DOTS_PROGRESS, 0, 1f);
        dotsAnimator.setDuration(900);
        dotsAnimator.setStartDelay(50);
        dotsAnimator.setInterpolator(mAccelerateDecelerate);

        // 放入动画集合
        mAnimatorSet.playTogether(
                outerCircleAnimator,
                innerCircleAnimator,
                starScaleYAnimator,
                starScaleXAnimator,
                dotsAnimator
        );

        // 动画集合监听
        mAnimatorSet.addListener(new AnimatorListenerAdapter() {
            @Override
            public void onAnimationCancel(Animator animation) {
                // 初始值
                mIvStar.setScaleX(1);
                mIvStar.setScaleY(1);
                mCvCircle.setInnerCircleRadiusProgress(0);
                mCvCircle.setOuterCircleRadiusProgress(0);
                mDvDots.setCurrentProgress(0);
            }
        });

        mAnimatorSet.start();
    }
}

点击事件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
@Override
public boolean onTouchEvent(MotionEvent event) {
    switch (event.getAction()) {
        case MotionEvent.ACTION_DOWN:
            mIvStar.animate().scaleX(0.7f).scaleY(0.7f).setDuration(150).setInterpolator(mDecelerate);
            setPressed(true);
            break;

        // 在控件内移动, 判断为点击.
        case MotionEvent.ACTION_MOVE:
            float x = event.getX();
            float y = event.getY();
            boolean isInside = (x > 0 && x < getWidth() && y > 0 && y < getHeight());
            if (isPressed() != isInside) {
                setPressed(isInside);
            }
            break;

        case MotionEvent.ACTION_UP:
            mIvStar.animate().scaleX(1).scaleY(1).setInterpolator(mDecelerate);
            if (isPressed()) {
                performClick();
                setPressed(false);
            }
            break;
    }
    return true;
}

参考

属性动画虽然有些复杂, 但是掌握其中原理, 特别有意思, 类似于数学公式, 及其锻炼智商.

OK, that’s all! Enjoy it!

原始地址:
http://www.wangchenlong.org/2016/03/22/1603/224-star-explode-anim/
欢迎Follow我的GitHub, 关注我的简书, 微博, CSDN, 掘金, Slides.
我已委托“维权骑士”为我的文章进行维权行动. 未经授权, 禁止转载, 授权或合作请留言.
